RAM Mount RAM USB-C Powered Dock f/Samsung Tab Active4 Pro Tab Active Pro [RAM-HOL-SAM52CPU]

RAM USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro

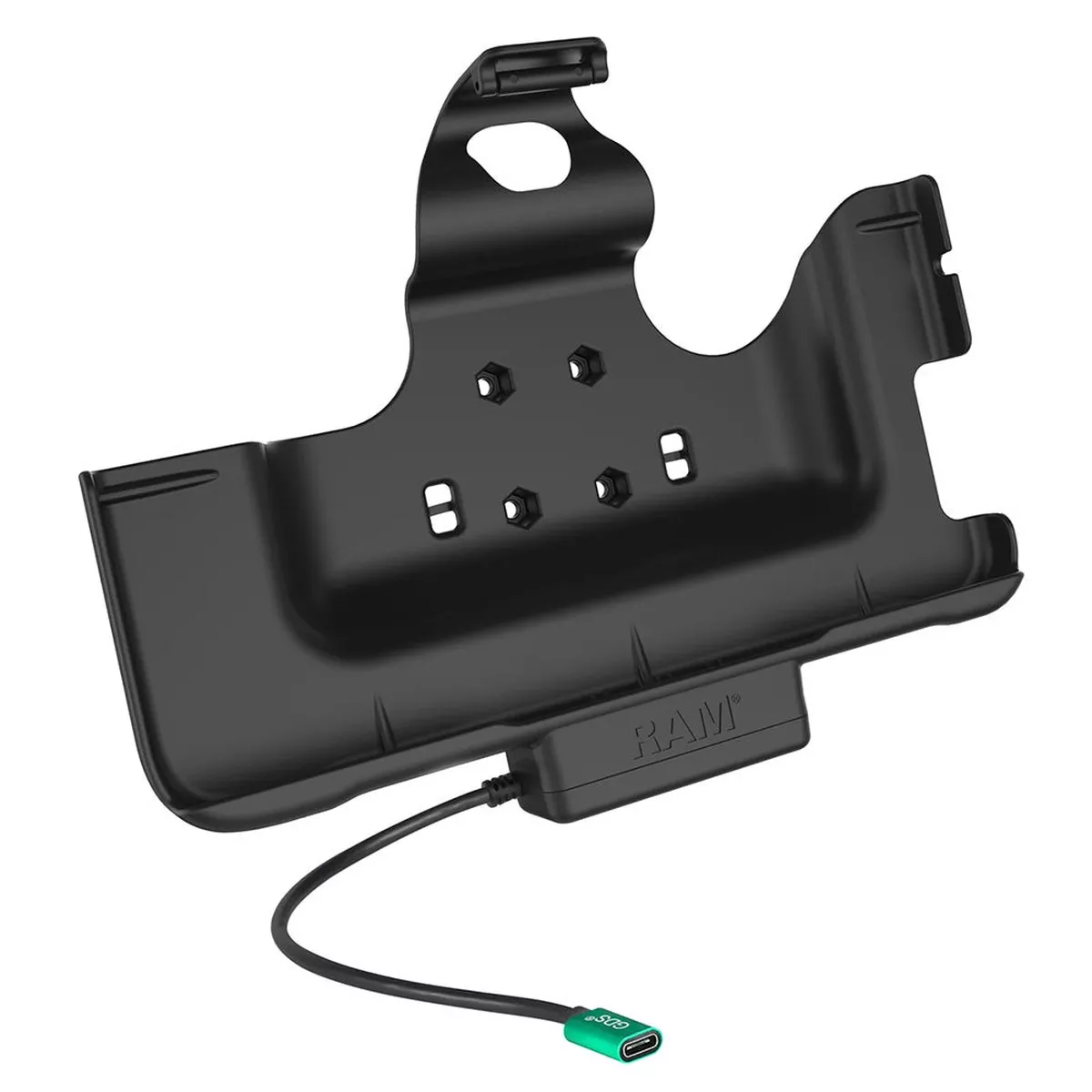

The RAM USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM Skin for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin thats included with the device. In addition, this cradle works perfectly with the RAM Skin while utilizing the GDS Hand-Stand or GDS shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM EZ-Rollr powered cradle also leaves the devices speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.

Features:

• The powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through an integrated pogo pin connector; for light-duty use and landscape mode only
• Access to speakers, mics, and headphone jack remains while the device is docked
• Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
• Compatible with the Samsung OEM skin as well as the RAM Skin
• Backed by a 3-year warranty

Specifications:

• Hardware Included: (4) 8-32 x 5/8″ Machine Screws(4) 8-32 Nylock Nuts(1) Cable Clamp(2) Large Cable Ties(5) Small Cable Ties
• Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″
• Materials: High-strength composite
• Input Voltage: 5.3-5.4VDC
• Output Voltage: 5VDC
• Power Output: 500mA
• Input Connector: USB Type-C Female
• Input Cable Length: 215mm
• Packaging Type: Poly Bag
• Warranty: 3-year warranty
• Weight: 0.71 lbs

Additional Information:

This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options.

This product will not support the “No Battery Mode” function of the Tab Active4 Pro. To support “No Battery Mode”, see RAM Tough-Case options.
