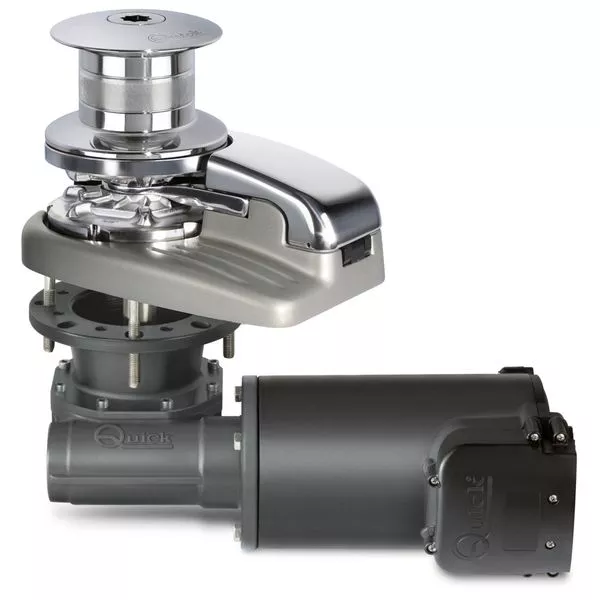

The Quick DH4 1724D vertical windlass is suitable for boats from 14 – 18 meters (46 – 59 ft) and is supplied with a contactor unit and aluminium handle as standard. Its base is constructed in anodized aluminium in hard oxide, making it extremely durable. This windlass features a 12mm gypsy which is suitable for 13mm DIN 766, 12mm ISO and 7/16″ G4 chain, as well as 3/4″ (19mm) rope (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Slim Splice Quick’). This DH4 1724D model also features a drum. This product consists of windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Drilling Template DN4 DH4 A3
Technical Manual DH4 Dylan H Series 1500 2000
