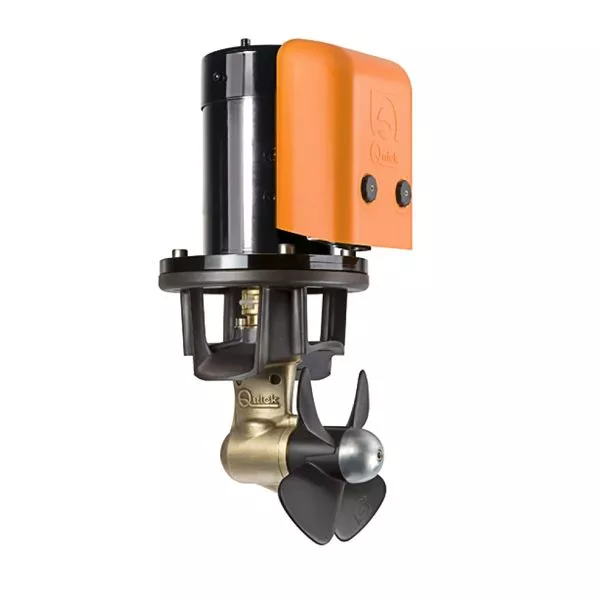

Quick BTQ185 Thruster 55KGF 24V 3.0kW 185mm

Quick BTQ 185-55 24V DC thruster recommended for boats 8 to 15 meters (26-49 ft) in length. This model has a single propeller made in sturdy composite material, a bronze gearbox and solenoids protection carter in sturdy composite material. It is equipped with an elastic coupling and has a zinc anode independent from the gearbox – making it easily replaceable.

Specs:

• Model: BTQ 185-55 (24V)

• Propeller type: Single

• Tunnel diameter: 185mm (7″ 18/64)

• Motor power: 3.0 kW

• Voltage: 24V

• Fusible: 150A CNL DIN

• Thrust: 55 kgf (121.2 lb)

• Weight: 16.9 kg (37.2 lb)

Product contents:

• Thruster

• Drill template

• Gasket

• O-ring (for assembly)

• Installation and use manual

• Conditions of warranty

Quick BTQ Series DC Thruster Installation Manual
