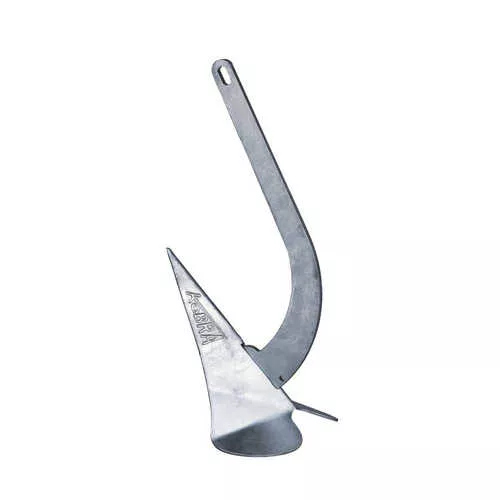

Plastimo Kobra 2 Fixed Anchor – Hot-Dip Galvanised Steel – 12 kg to 35 kg
The Plastimo Kobra 2 is a high-performance fast-setting anchor manufactured from high-strength 55 kg/mm² hot-dip galvanised steel. Its weighted tip, extra-wide flukes and optimized geometry allow rapid penetration into the seabed while delivering exceptional holding power in a wide range of anchoring conditions.
The Kobra 2 features a fixed shank and is supplied with the shank unbolted for transport. The shank must be securely bolted before the anchor is put into service. Thanks to its highly efficient design, the Kobra 2 can often be selected one to two sizes smaller than anchors traditionally recommended for similar boats.
Features
- Kobra 2 fast-setting anchor
- Fixed shank design
- Manufactured from high-strength 55 kg/mm² hot-dip galvanised steel
- Weighted tip for rapid seabed penetration
- Extra-wide flukes for exceptional holding power
- Optimized anchor geometry
- Shank supplied unbolted for transport
- Shank must be bolted before use
- Suitable for boats from 13 m to 25 m
Available Variants
| Part Number | Boat Length | Weight | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|---|---|
| 49223 | 13 m | 12 kg | 739 | 341 | 305 | 452 | 234 | 800 |
| 49226 | 14.5 m | 14 kg | 789 | 361 | 330 | 500 | 254 | 852 |
| 49229 | 16 m | 16 kg | 815 | 374 | 340 | 503 | 259 | 881 |
| 49296 | 18 m | 20 kg | 863 | 409 | 366 | 536 | 275 | 940 |
| 49304 | 20 m | 25 kg | 937 | 456 | 395 | 586 | 296 | 1023 |
| 49360 | 25 m | 35 kg | 1029 | 483 | 446 | 644 | 331 | 1121 |
Technical Specifications
| Product Type | Fast-Setting Anchor |
| Series | Kobra 2 |
| Material | Hot-Dip Galvanised High-Strength Steel |
| Steel Strength | 55 kg/mm² |
| Shank Type | Fixed |
| Construction | Weighted Tip with Extra-Wide Flukes |
| Assembly | Shank Supplied Unbolted – Must Be Bolted Before Use |
| Available Weights | 12 kg, 14 kg, 16 kg, 20 kg, 25 kg, 35 kg |
| Recommended Boat Length | 13 m to 25 m |
