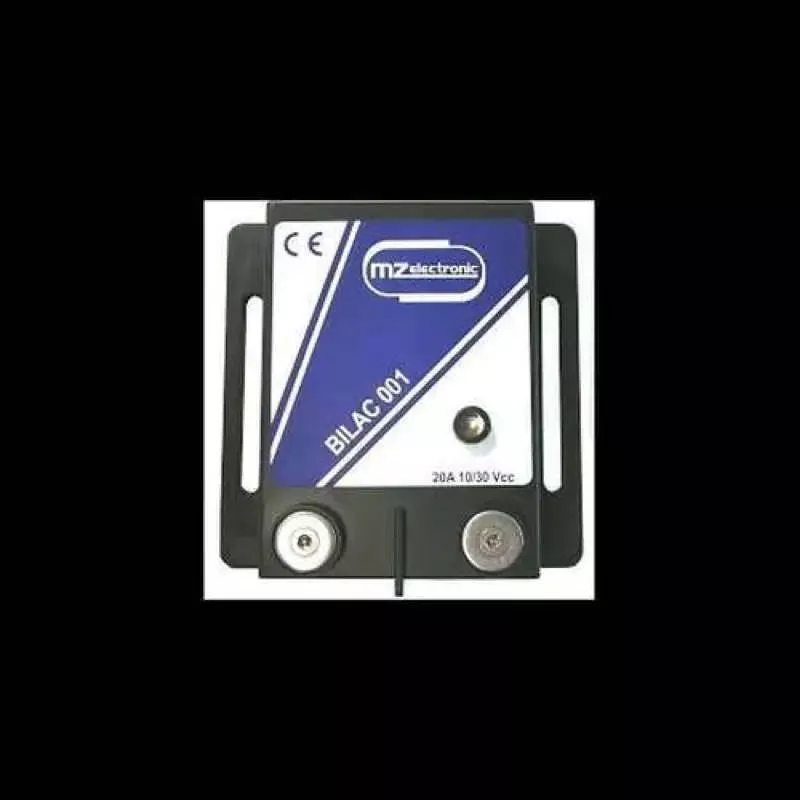

MZ Electronic Bilge Pump Switch 12/24V 20A
This bilge pump switch operates with a power supply from 10 to 30 V DC and supports pump voltage from 12 to 24 V DC. It handles continuous loads of 15 A, with a maximum load of 20 A for 15 minutes. The switch has an IP68 protection rating and can operate up to 55°C.
- Operating voltage: 10 – 30 V DC
- Pump voltage: 12 – 24 V DC
- Continuous load: 15 A
- Maximum load: 20 A for 15 minutes
- IP rating: IP68
- Max operating temperature: 55°C (131°F)
- Drainage liquid conductivity:> 80 µS/cm
- Dimensions (mm): 80 x 77 x 21
- Connection cable: 3 x 1.5 mm²
- Cable length supplied: 750 mm
- Weight: 230 g
- Item number: 032355
- Packaging unit: Piece
- Article code supplier: BILAC001
- EAN code: 8055731160594
