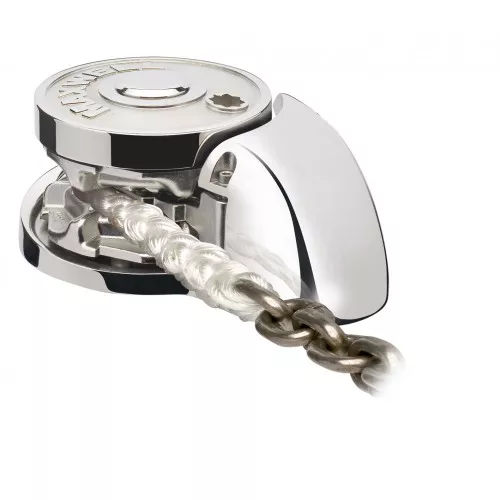

Maxwell RC12 Vertical Anchor Windlass
The Maxwell RC12 Anchor Windlass represents a new generation of anchor handling systems, combining advanced engineering with an elegant design. Crafted from marine-grade 316 stainless steel, this Vertical Windlass ensures exceptional corrosion resistance and long-term durability. Designed for vessels between 10.5 and 23 meters, this winch offers smooth operation with 10-13 mm chains and 16-20 mm cables.
Key Features:
- Classic open design with polished 316 stainless steel construction for durability and aesthetics.
- Maximum thrust capacity of 1590 kg with a chain lifting speed of up to 20 m/min, ensuring efficient anchor handling.
- Supports 10 mm (RC12-10) and 13 mm (RC12-12) anchor chains combined with 16-20 mm cables.
- Suitable for metal vessels (10.5-18.5 m) and plastic yachts (11-23 m), adapting to a wide range of vessel types.
- Available in electric (12V/24V) and hydraulic (HYD) models for versatile operation.
- Backed by a 3-year manufacturer’s warranty for peace of mind.
Specifications:
Electrical Models:
| Model | Traction | Static Load | Chain Lifting Speed | Cable Lifting Speed | Motor Power | Weight |
|---|---|---|---|---|---|---|
| Maxwell RC12-10 | 1134 kg | 2200 kg | 20 m/min | 17 m/min | 1200 W | 29 kg |
| Maxwell RC12-12 | 1590 kg | 2200 kg | 15 m/min | 13 m/min | 1200 W | 29 kg |
Hydraulic Models:
| Model | Traction | Static Load | Chain Lifting Speed | Cable Lifting Speed | Hydraulic Pressure | Hydraulic Flow | Weight |
|---|---|---|---|---|---|---|---|
| Maxwell RC12-10 HYD | 1134 kg | 2200 kg | 20 m/min | 17 m/min | 138 bar | 42 l/min | 23 kg |
| Maxwell RC12-12 HYD | 1590 kg | 2200 kg | 15 m/min | 13 m/min | 138 bar | 42 l/min | 23 kg |
Dimensions:
| Type | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| RC12-10 | 293 mm | 128 mm | 206 mm | 210 mm | 294 mm | 482 mm | 90 mm | 54 mm | 106 mm | 62 mm |
| RC12-12 | 293 mm | 128 mm | 206 mm | 210 mm | 294 mm | 482 mm | 90 mm | 54 mm | 106 mm | 62 mm |
Selection Guide:
| Model | Light Vessel Length | Light Vessel (Cable Only) | Heavy Vessel Length | Chain Size | Cable Size |
|---|---|---|---|---|---|
| Maxwell RC12-10 | 11.0-16.8 m | 11.0-18.5 m | 10.7-14.0 m | 10 mm | 16-20 mm |
| Maxwell RC12-12 | 13.7-20.5 m | 13.7-23.0 m | 12.2-18.5 m | 12-13 mm | 20 mm |
Vetus Catalog Parts:
P104900, P104901, P104902, P104903, P104904, P104905
