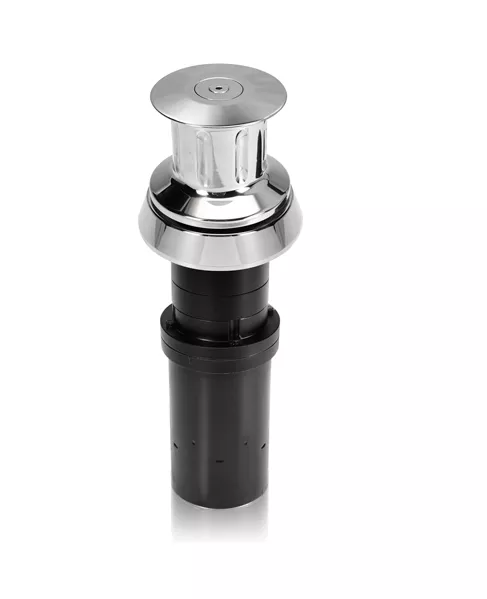

Inline Vertical Capstan, Model ‘Izmir’, 24V, 800W
This version of the Izmir inline vertical capstan operates on 24V, suitable for boats up to 56′ (17m), offering a slightly higher max linear load and efficient line speed with the included control box.
- Article number: 72820
- Suitable for boats up to 56′ (17m)
- Motor power: 800W
- Power supply: 24V
- Max. linear load: 810kg
- Lift working load: 100kg
- Amps at work load: 45A
- Line speed: 25m/min
- Weight: 11kg
- Control box: Included
- Line size: 8mm
- Conforms to ISO 4565 / DIN 766
- Drum: Without
- Dimensions:
- A: 139mm
- B: 126mm
- C: 18/40mm
- D: 265mm
- E: 90mm
- F: 80mm
