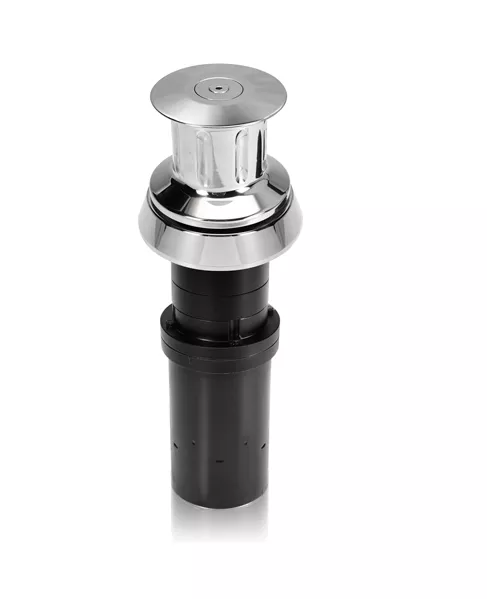

Inline Vertical Capstan, Model ‘Izmir’, 12V, 800W
The Izmir inline vertical capstan for boats up to 56′ (17m) is powered by an 800W motor on a 12V supply, delivering efficient line handling with included control box.
- Article number: 72819
- Suitable for boats up to 56′ (17m)
- Motor power: 800W
- Power supply: 12V
- Max. linear load: 800kg
- Lift working load: 100kg
- Amps at work load: 90A
- Line speed: 25m/min
- Weight: 11kg
- Control box: Included
- Line size: 6mm
- Conforms to ISO 4565 / DIN 766
- Drum: Without
- Dimensions:
- A: 139mm
- B: 126mm
- C: 18/40mm
- D: 265mm
- E: 90mm
- F: 80mm
