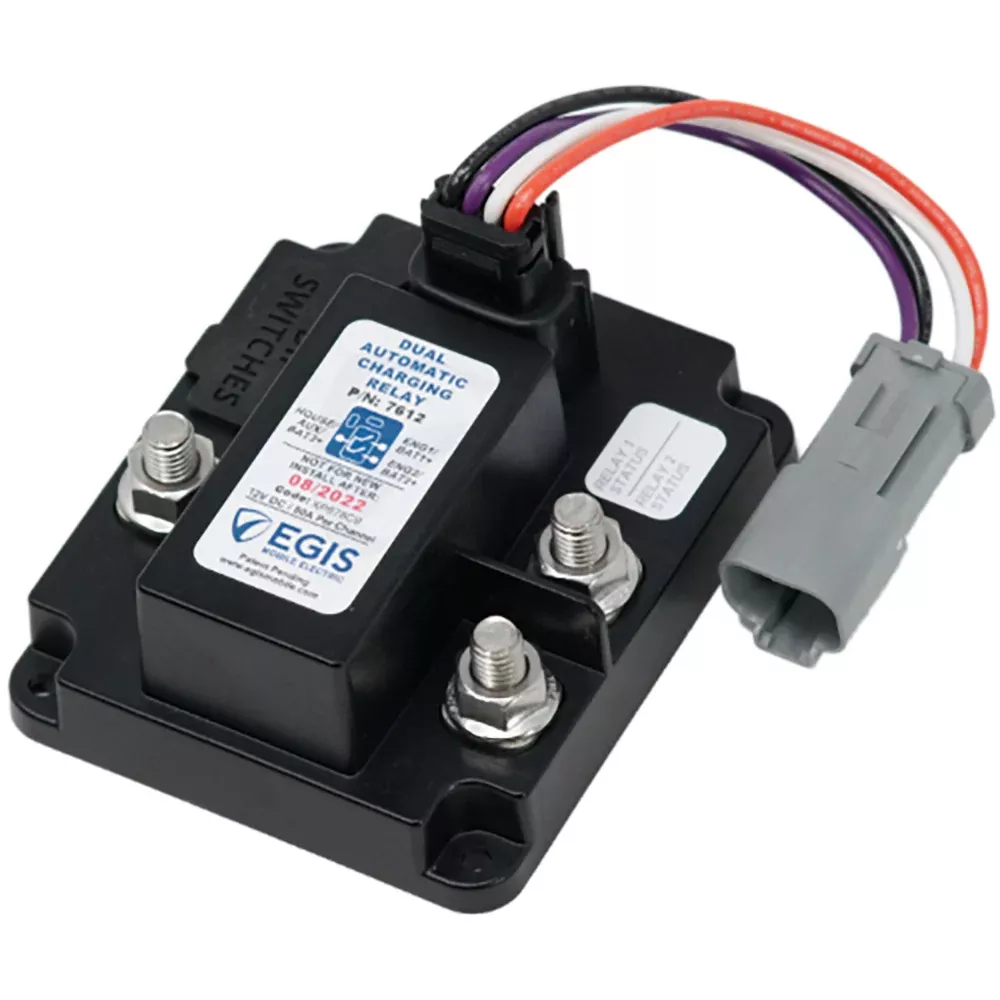

Egis Triple Battery Advanced Automatic Charging Relay (ACR) – 12V

Triple Battery Advanced Automatic Charging Relay (ACR) – 12V

Two Independent ACRs in One Device reduce installation space and time. Significantly lowers the out-of-state current draw.

Features:

• Eliminates Dead Start Batteries by sharing charge sources with all batteries and isolating batteries when no charge sources are present
• Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes DT04 harness. A single device reduces installation time, space, cost, and points of potential failure
• An additional low-amp output can be used to report device status remotely.
• Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection
• Ultra Low Off-State Current: Compare two typical ACRs (20 mA) vs Dual ACR @ 1.3 mA
• Adjustable Off-Voltage for Auxiliary Battery Priority provides the ability to share start battery energy for auxiliary without risking engine starting ability.
• Start/Engine Isolation input option for ensuring sensitive electronics do not experience voltage sags and spikes from the cranking event.
• Start Assist input option to ensure maximum cranking amps available when necessary.
• 4 Year Industry-Leading Warranty

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Type: Electric
• Box Dimensions: 3″H x 6″W x 7″L WT: 0.85 lbs
• UPC: 304841518077

Brochure (pdf)

SKU:EGI-7612
