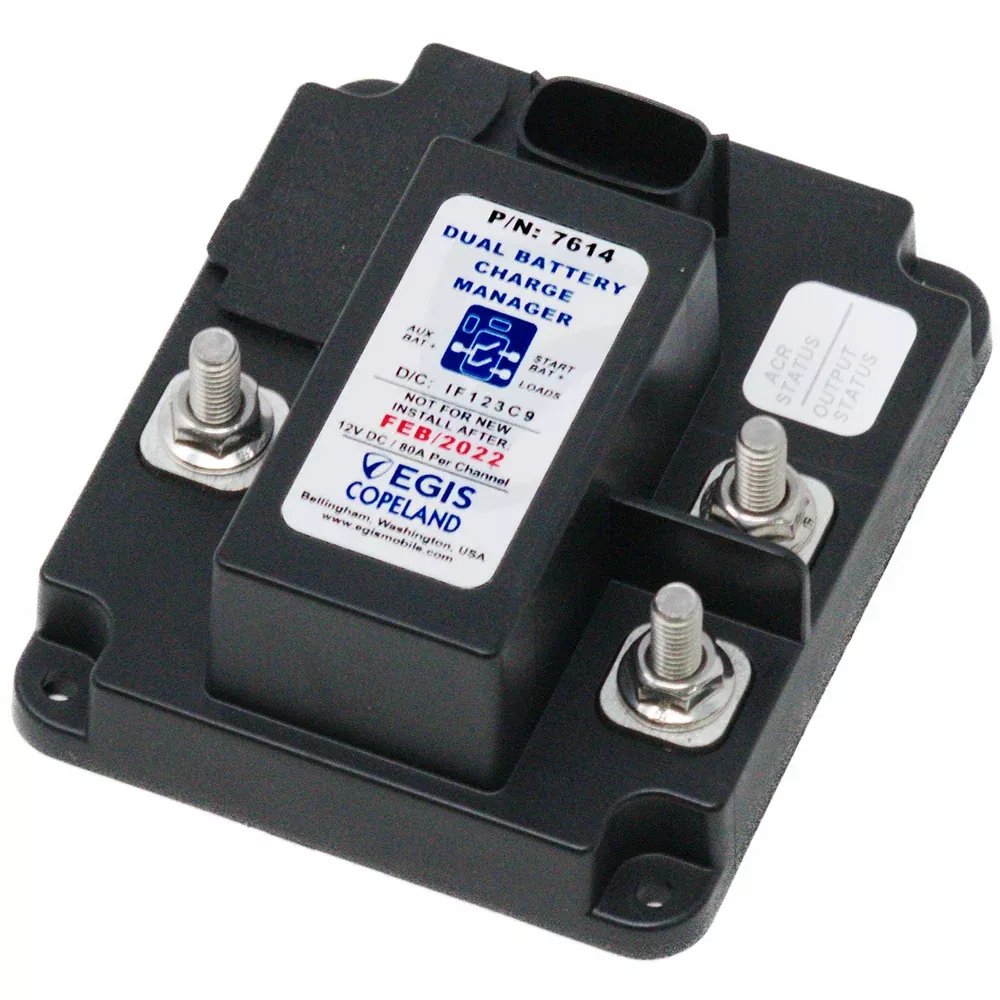

Egis Dual Battery Charge Manager – 12V

Dual Battery Charge Manager – 12V

One Product Handles Two Functions for both auxiliary battery charge management and timed load shedding for add-on circuits.

Prevents add-on equipment from draining batteries / maximizes and extends operational readiness

Protects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.

Features:

• Monitors battery voltage and disconnects the load from the battery to prevent further discharge. Lowest off-state current draw (1.3 mA) available.
• Flexible Control Options via Ignition Key, alternator voltage sense, or both.
• Simple & Robust Installation: Sealed plug with optional long wire leads. A single device reduces installation time and costs, and points of potential failure
• Kill Switch control input options for service technicians, emergency OFF
• Adjustable OFF Time Delay & Low Voltage Cut-Off: 0 Seconds to 4 hours, Switch only mode, LVD only mode, 11.0, 11.5, 12.0 Vdc cutoff levels.
• Remote and on-board diagnosis indicators to simplify troubleshooting
• Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Internal temperature overload protection
• Start Isolation input protects sensitive add-on equipment from the engine starting event.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry-Leading Warranty

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Type: Electric
• Box Dimensions: 3″H x 6″W x 7″L WT: 0.83 lbs
• UPC: 850035199657

Brochure (pdf)

SKU:EGI-7614
