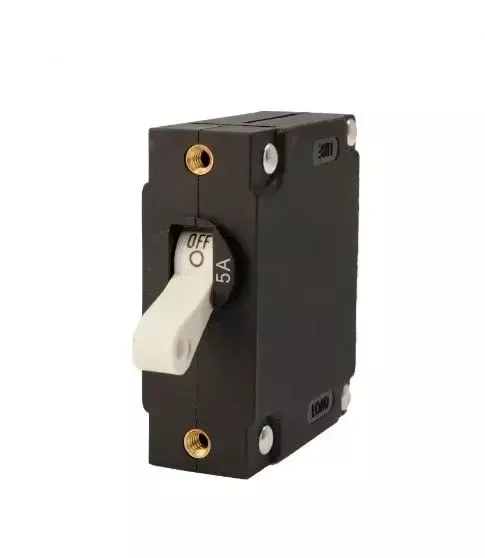

EGIS A Series White Toggle Panel Mount Circuit Breaker Single Pole AC/DC 5 Amp Retail PackModel: 3201-05
- AC & DC Rated to cover a wide range of system application needs.
- Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
- Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws .
- 4 Year Warranty: We stand behind our product’s ability to meet your needs.
Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.
Specifications
| CONTINUOUS CURRENT (AMPS) | 5 |
| MAX VOLTAGE | 277 Vac / 80 Vdc |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance @Rated current | 6,000 Cycles |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.Brand: Egis Mobile ElectronicsUPC: 850074331179Model Number: 3201-05Weight: 0.15
