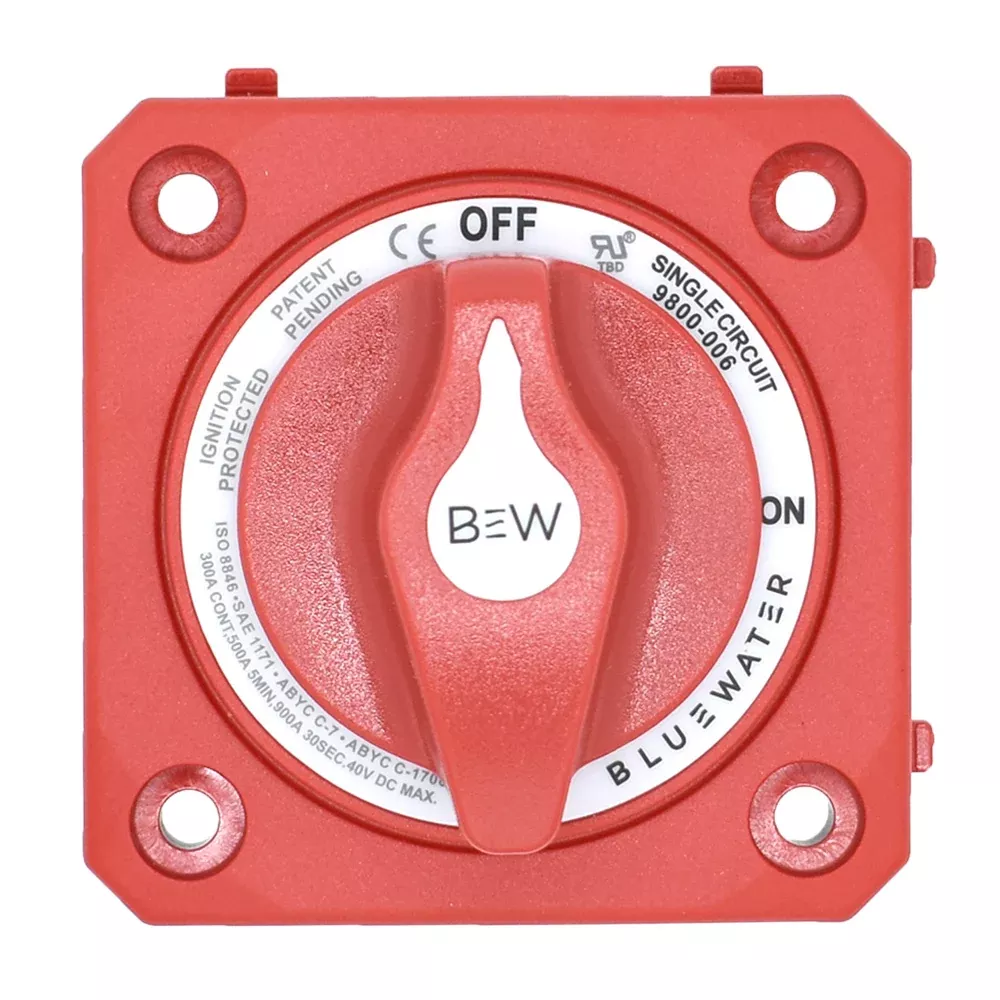

Bluewater On/Off Switch Battery Switch – Panel Mount – Red

On/Off Switch Battery Switch – Panel Mount – Red

Simple, reliable, and built for tough environments, this On/Off Battery Switch provides secure control of power to a single circuit. It’s ideal for isolating batteries or equipment when not in use, helping to ensure safety and prevent unwanted battery drain.

Ignition-protected and safe for use aboard gasoline-powered boats, this switch is well-suited for both marine and RV applications. The versatile case design allows for surface, front panel, or rear panel mounting.

Constructed from all non-corrosive marine-grade metals and molded in reinforced polycarbonate, it delivers long-lasting durability in harsh conditions. Tactile knob textures allow users to confirm switch position by feel, and the included international ON/OFF label and ICON label set make circuit identification easy and intuitive.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 40VDC
• Cable Size: 4/0 AWG

Specifications:

• Continuous Amperage: 300
• Lockable: No
• Positions: 2
• Box Dimensions: 3″H x 6″W x 9″L WT: 0.55 lbs
• UPC: 810196331143

Quick Guide (pdf)
Brochure (pdf)

SKU:BLU-9800-006-10
