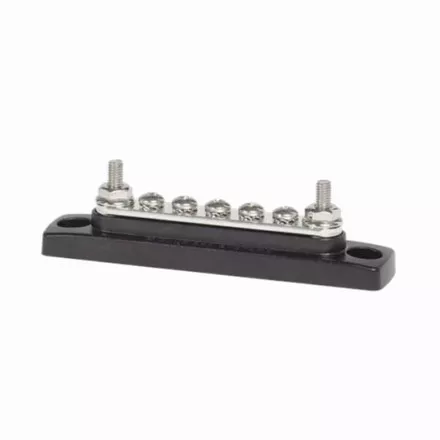

Blue Sea Systems BusBar 100A 5 Terminal
100A busbar designed to consolidate multiple wires or distribute power to multiple circuits.
Features stainless steel studs for high-torque connections, a raised bus for easy wire access and a heat-resistant UL 94-V0 rated base.
Features
- 100A capacity.
- 5 terminal positions.
- Insert-moulded stainless steel studs.
- High-torque connections for reliable electrical contact.
- Raised bus provides easy access to multiple wires.
- UL 94-V0 rated base material.
- Recessed mounting holes help prevent accidental shorts.
Materials
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics.
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000.
| Part Number | Max Voltage | Screw Terminals | Terminal Studs | Terminal Type | Continuous Rating |
|---|---|---|---|---|---|
| BSS-BS-2304B |
300V AC |
5 | 2 | 10-32 Stud 8-32 Screw |
100A |
