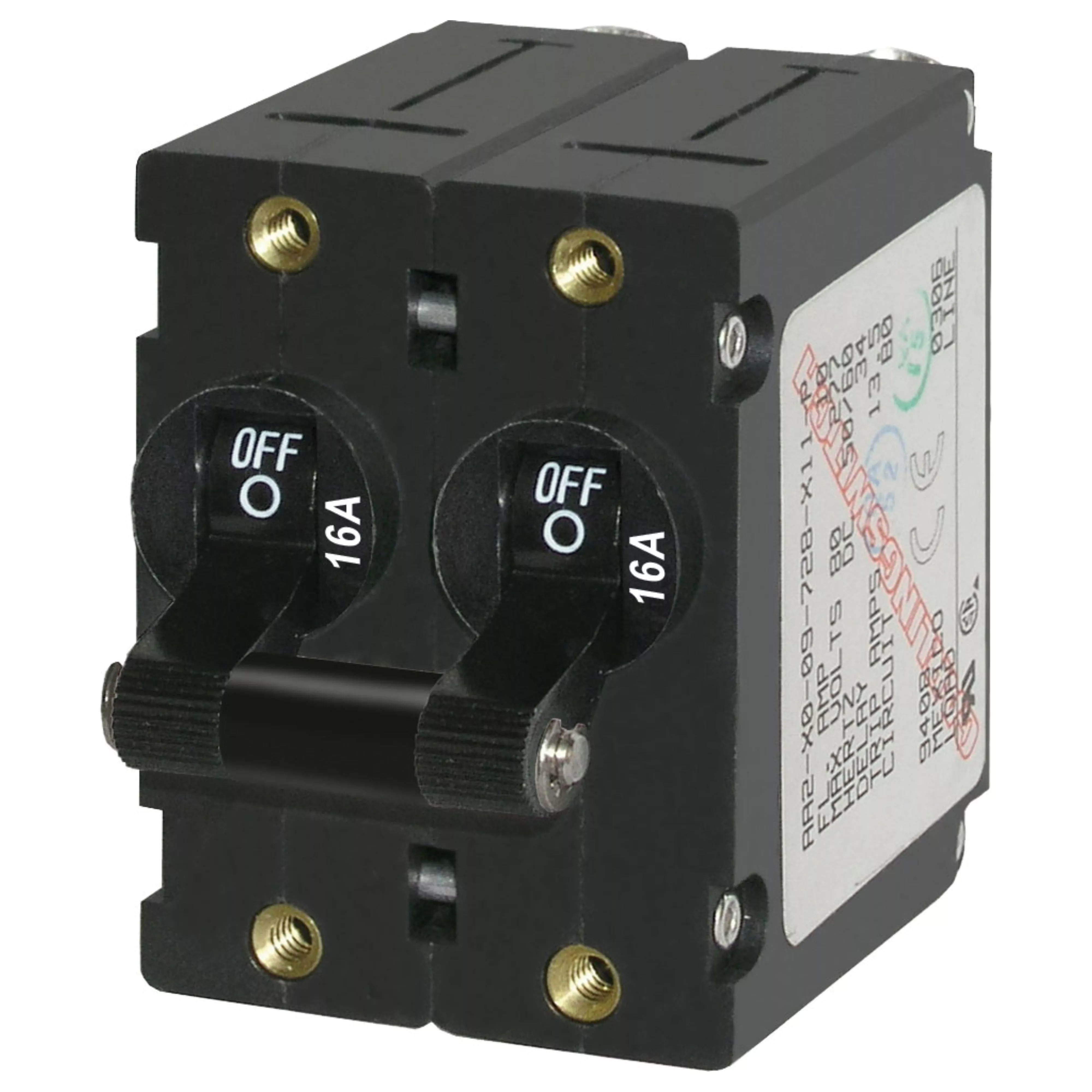

A-SERIES DOUBLE POLE MAGNETIC
AC CIRCUIT BREAKER
Used as AC main circuit breakers to switch both
live and neutral legs
With neutral circuit on one pole and live circuit on
other pole, both poles will trip if either pole trips
• CE marked, TUV certified, CSA certified
• UL 1077 recognized
• Max amperage: 50 Amps
• Max voltage: 250 Volts AC
• Circuit breaker type: Magnetic Hydraulic – Trip Free
• Operating temp range: -40ºC to +85ºC
• Terminal screw: 10-32 SS – Recommended torque 14-15 in-lb*
• Rated switch cycles: 10,000 @ rated amperage & voltage
• Mounting screws: 6-32 SS – Recommended torque 6-8 in-lb
