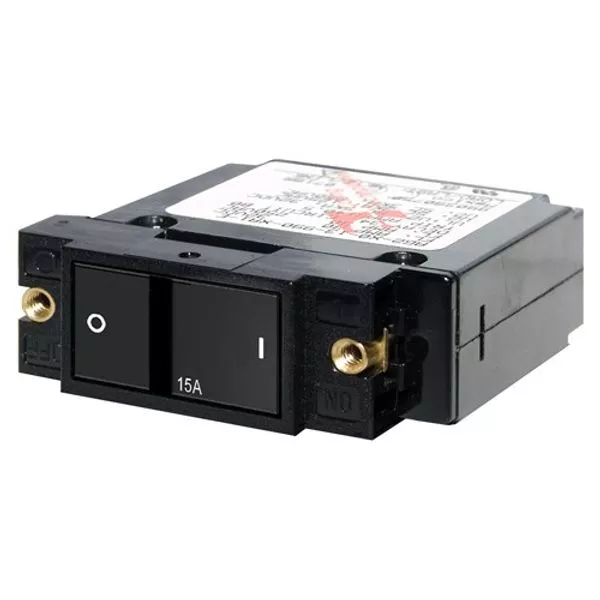

Blue Sea A Series Flat Circuit Breaker/ Switch 15A

A-SERIES FLAT ROCKER CIRCUIT BREAKERS (AC/DC) Standard circuit breaker used on the 360 Panel System (1200 Series) Flat actuator resists accidental switching by being flush in the ON position White actuator indicates OFF position Single pole is frequently used for AC or DC Branch circuit protection International ON & OFF symbols support vertical or horizontal mounting Regulatory: CE marked, TUV certified, CSA certified, UL 1077 recognized o Voltage max operating: 32V DC / 250V AC o Temp operating: Min: -40C, Max: 85C o Switching cycles: 10,000 @ rated A & V o Type: Magnetic hydraulic -Trip free o Terminal screw: 10-32 Stainless Steel o Terminal screw torque: 14-15 in-lb recommended(load terminal is 30 angled) o Mounting screw: 6-32 Stainless Steel o Mounting screw torque: 6-8 in-lb recommended
