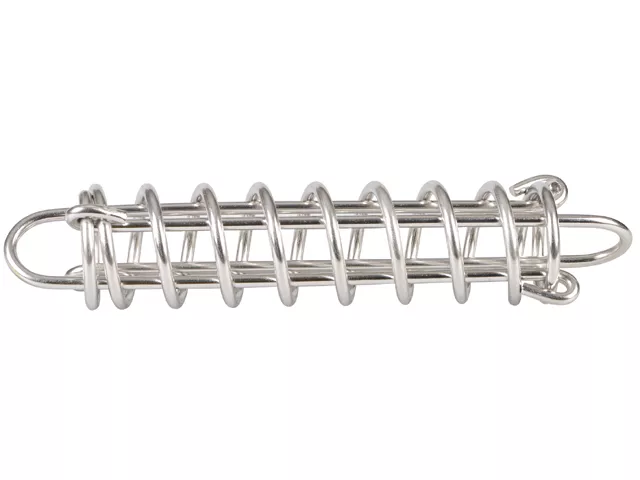

Allpa Heavy Duty Stainless Steel Mooring Spring with Plastic Inserts – For Boats up to 15 m
The Allpa Heavy Duty Mooring Spring is engineered to reduce dynamic loads generated by waves, swell and vessel movement while moored. Its stainless steel spring construction absorbs sudden tension in mooring lines, improving onboard comfort and helping protect ropes, cleats and dock hardware from excessive stress.
Each spring is equipped with durable plastic end inserts that minimize squeaking during operation while reducing metal-to-metal contact. The corrosion-resistant stainless steel construction ensures reliable performance and long service life in demanding marine environments.
The series includes five sizes suitable for boats from 6 to 15 metres in length, allowing the correct spring to be selected according to vessel size and maximum displacement.
Key Features
- Heavy-duty stainless steel mooring spring
- Plastic anti-squeak inserts for quiet operation
- Reduces shock loads on mooring lines
- Helps protect cleats, bollards and deck hardware
- Corrosion-resistant marine construction
- Long service life in saltwater environments
- Available in multiple sizes for boats up to 15 metres
Technical Specifications
| Article | Wire Ø | Length | Maximum Boat Length | Maximum Boat Weight |
|---|---|---|---|---|
| 9024250 | 5 mm | 300 mm | 6 m | 1,000 kg |
| 9024251 | 6 mm | 300 mm | 8 m | 2,400 kg |
| 9024252 | 7 mm | 400 mm | 10 m | 4,000 kg |
| 9024253 | 9 mm | 470 mm | 12 m | 8,000 kg |
| 9024254 | 11 mm | 470 mm | 14–15 m | 13,000 kg |
